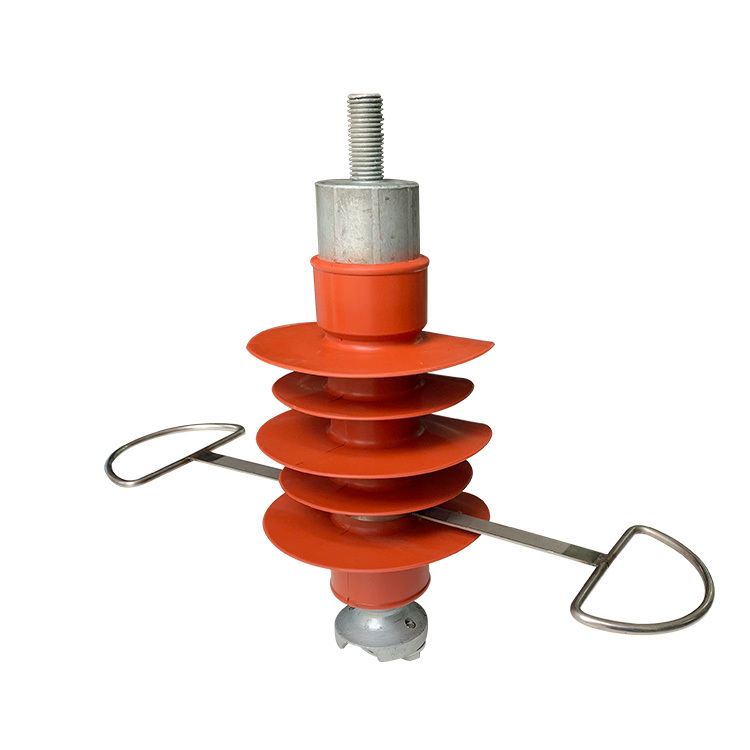

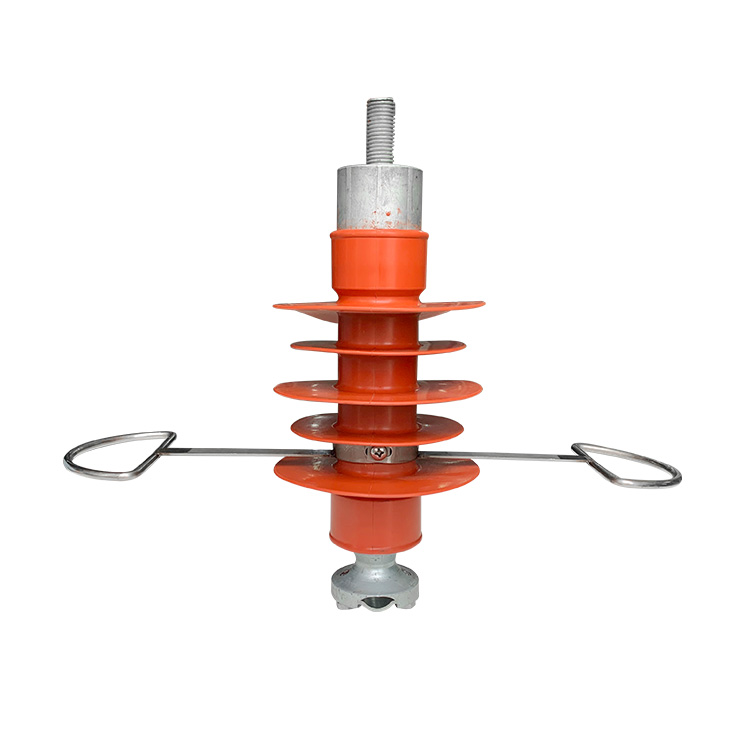

Zinc oxide arrester is a lightning protection device with superior protection performance, light weight, pollution resistance and stable performance. It mainly uses the good non-linear volt-ampere characteristics of zinc oxide to make the current flowing through the arrester at normal working voltage very small (microamp or milliampere level); when the overvoltage acts, the resistance drops sharply, venting the overvoltage Energy, to achieve the effect of protection. The difference between this kind of arrester and the traditional arrester is that it has no discharge gap, and uses the non-linear characteristics of zinc oxide to discharge and break.| MOA Type | MOA Rated Voltage |
MCOV | Max.Residual Viltage | 2ms square wave impulse withstand current |
High current impulse withstand 4/10μs |
||
|
Steep current impuise1/10μS |
Lightning current lmpulse 8/20μs |
Switching current lmpulse30/60μs |
|||||
| KV | KV | KV | KV | KV | A | KV | |
| YH5W-24 | 24 | 19.5 | 82 | 72 | 62.6 | 150 | 65 |
| YH10W-24 | 24 | 19.5 | 75 | 65 | 61.6 | 520 | 100 |
