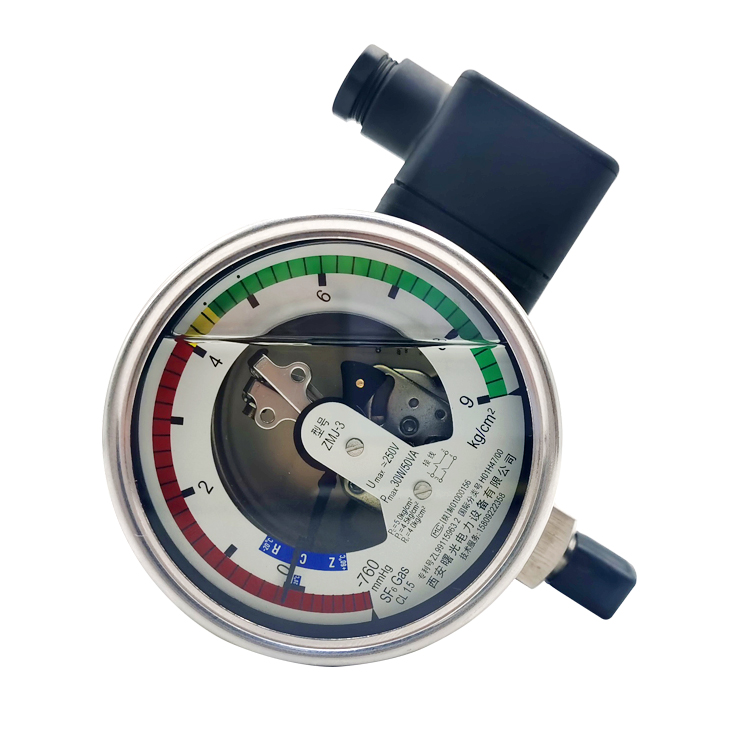

Used to detect the density of SF6 gas in a closed container,widely used in medium voltage switchgear and GIS,can be used in outside hard conditions.Specification:
1. Size: 100mm
2. Range:-0.1-0.1Bar (customizable)
3. Accuracy: At 20℃:Class 1.0 or 1.6; -20℃ to +60℃:Class 2.5; -30℃ to -20℃:Class 3.0
4. Protection:IP67
5. Connection: bottom, or back
6. Leakage rate: < 1×10-9 Pa·m 3 /s
7. Cable size: 1.5mm² recommended; 2.5mm² maximum
8. Insulation properties
Insulation resistance: >100 MΩ(500V DC)
Withstand voltage: AV2000V, 50/60 Hz 1 min (to case)
9. Contact ratings : 30W/50VA,1A max
220VDC/380V 50/60Hz max
10. Window: Safety glass
| sf6 gas sulfur hexafluoride meter monitor gas density meter | |||
| Product Name | sf6 gas density meter | Operating temperature | -20°C to +60°C |
| Normal Size |
1"(25mm),1.5"(40mm),2"(50mm) 2.5"(63mm),3"(75mm),4(100mm),6"(150mm). |
Accuracy
|
±1%,±1.6% |
| Bourdon tube | Copper alloy or Stainless steel,<100Bar: C-Type,≥100Bar: Helical Type | Connection | stainless steel/brass (customizable) |
| Case | Stainlesssteel/blacksteel/plastic(customizable) | Movement | stainless steel/brass (customizable) |
| Bezel | Stainlesssteel/blacksteel/plastic(customizable) | Dial | Aluminum |
| Pressure Range | -1Bar(-30"Hg)-01000Bar(15000Psi(customizable) | Pointer | Aluminum |
| Thread | 1/8",1/4", 3/8",1/2";PT(BSPT,ZG),BSP(G,PF),NPT etc. | Window | Safety or Tempered Glass |
| Liquid | Glycerin or Silicone | Gaskets Filling cap | Nitrile or Silica gel |
| range |
0.1/0.16/0.25/0.4/0.6/1.0/1.6/2.5/4.0/6.0/10/16/25/40/60/100Map -0.1-0/0.1/0.6/-0.1-0.15/-0.1-0.3/-0.1-0.5/-0.1-0.9/-0.1-1.5/-0.1-2.4Map ect |
||
