High Quality Customizable Bwy (wtyk) 802 803 Pt100 Index Indication Transformer Oil Level Temperature Controller
Introduction
The transformer temperature controller is consisting of elastic component, capillary tube and temperature bulb. It is a sealed system filled with temperature -sensing medium. When the measured temperature changes the volume of actuating medium in the temperature bulb will be changed along with linear graduation. This volume increment is transmitted by capillary tube so as to take a corresponding linear displacement. After magnifying the linear displacement by a special amplifier, the measured temperature can be indicated and switch on a micro switch to send out an electric signal to power on or off the cooler system.
CHARACTERISTIC
The BWY-803A temperature controllers adopt the technology of complex transfusing which can output the signal of Pt100 platinum thermal resistor simultaneously. This signal can be transmitted to a controller room more than hundreds of meters away. By the series XMT digital display thermometer, the temperature of transformer will be displayed and adjusted at the same time. The signal also can be translated to computer typical signal (0~5V 1~5V or 4~20mA) by a digital thermometer.
Specification
| Product Name |
BWY-803 transformer temperature controller |
| Operating temperature |
-30~55℃ |
| Measuring Range |
-20~ 80℃；0~100℃；0~120℃；0~150℃ |
| Accuracy Class |
1.5 |
| Technical data of switch |
a)Setting range：full-range adjustable
b)Preset Accuracy：±3℃ c)Switch Shift Deferential: 6±2℃
d)Contact capacity: AC 220V/ 3A
e)Standard Preset Value: K1=55℃ K2=65℃ K3=80℃ |
| Installing Dimension of Gauge |
Refer to installation dimension drawing |
| Output performance |
a Pt100 platinum resistance signal output |

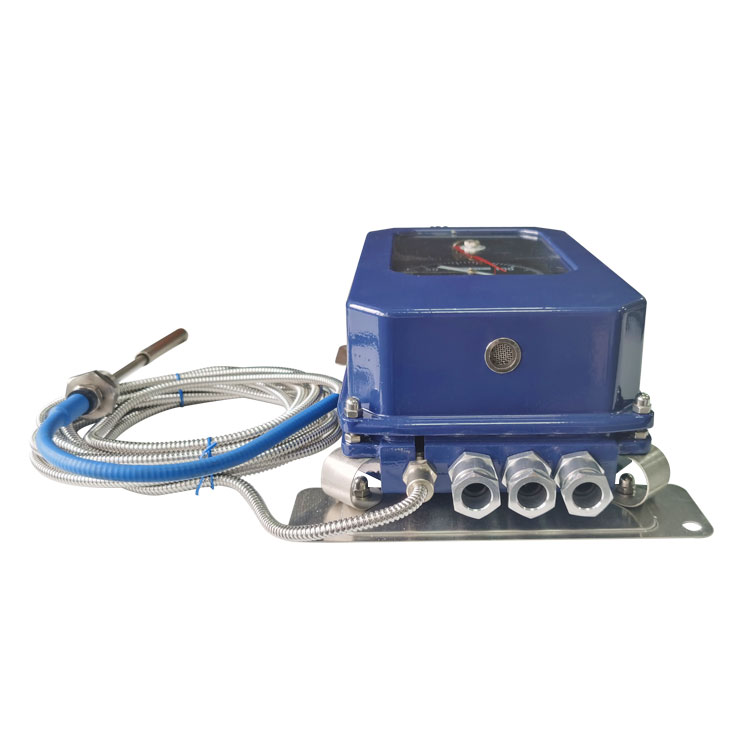

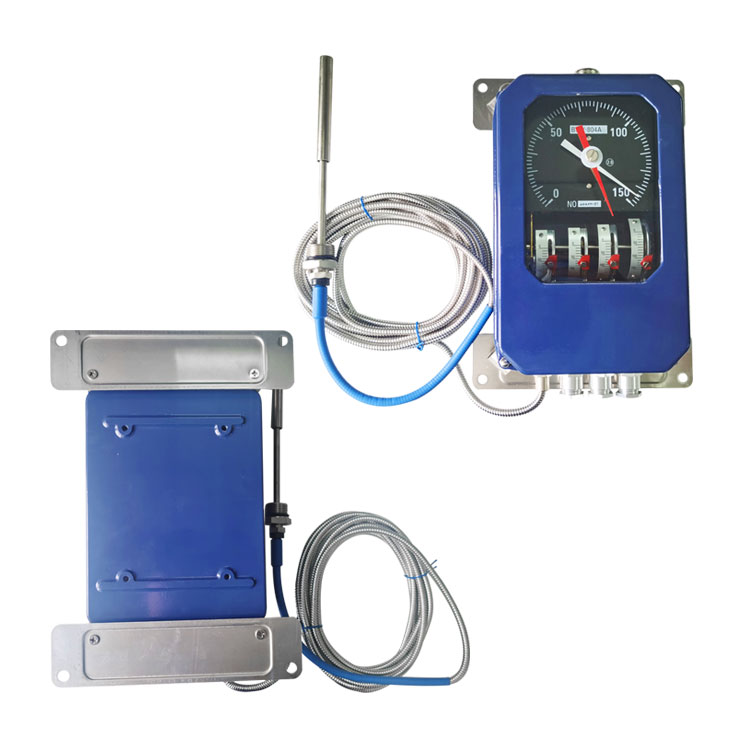

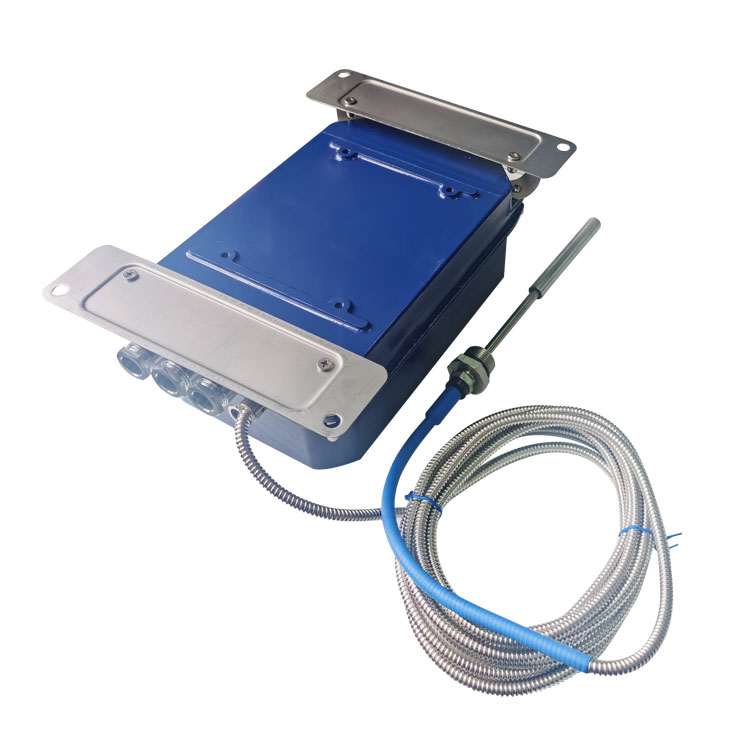

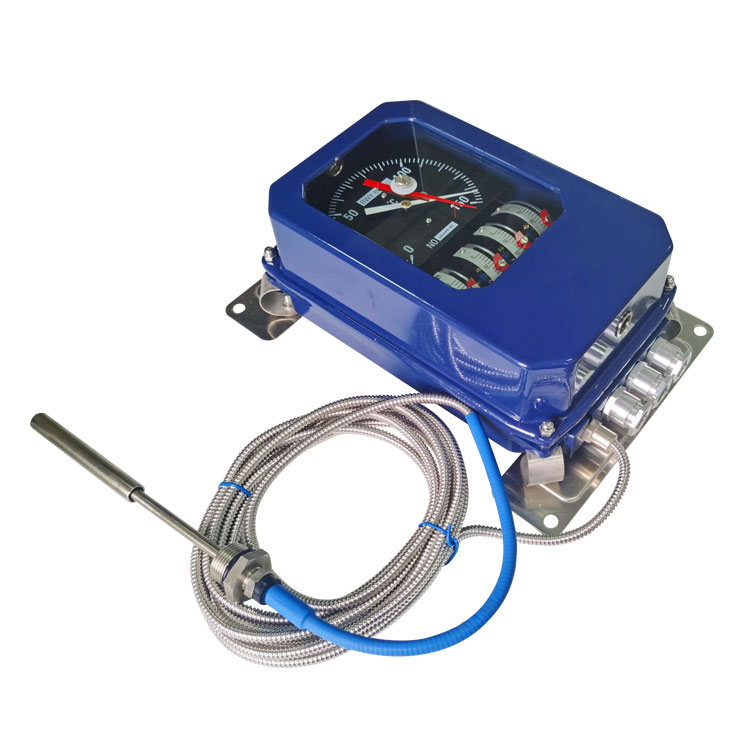

Product Display
